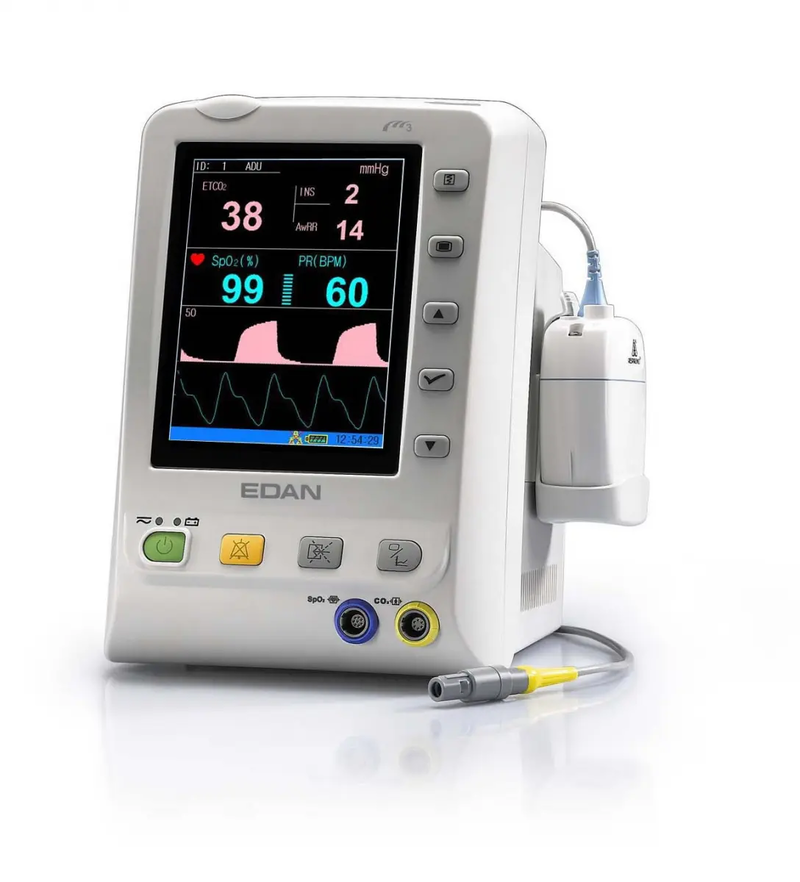

Edan M3B Capnograph

Edan M3B Capnograph

Vendor: Edan
Call 888-267-2966 for Pricing

With SpO2 (Nellcor optional) and Respironics CO2 highly advanced monitoring technologies, EDAN M3B ensures effective capnography monitoring for intubated and non-intubated patients for continuous long-term monitoring. It is tailored for mechanically ventilated and non-intubated patients.

Edan M3B Capnograph - 5.7" Color TFT LCD screen, EDAN SpO2 & pulse rate measurment, numeric and waveform simultaneous display, trend table/graph review & record, USB data storage, nuse call and rechargable Lithium ion battery. Patient ready with accessories.

The monitor integrates the function of parameter measurement modules, display, recording and output to compose a compact, portable device. Its built-in replaceable battery provides convenience for patient movement. On the LCD display screen, SpO2 waveform, CO2 waveform and all the monitoring parameters can be displayed clearly.

The monitor is a user-friendly device with operations conducted by a few buttons on the front panel.

The monitor can monitor:


  • Arterial oxygen saturation (SpO2)
  • Pulse Rate (PR)
  • SpO2 PLETH (Plethysmogram)


  • End Tidal CO2 (EtCO2)
  • Fraction of inspired CO2 (FiCO2)
  • Air Way Respiration Rate (AwRR)

The monitor provides extensive functions as visual and audible alarm, net connection, nurse call, recording and storage for trend data, SpO2/CO2 measurements review, net connection, nurse call, alarm events and so on. Recording and mobile storage are optional functions for monitor.


  • 5.7 inch high resolution display for easy reading
  • Lightweight, portable design and user-friendly interface for easy operation
  • SpO2, Pulse Rate and Respironics sidestream and mainstream CO2 measurement
  • Nellcor OxiMax SpO2 selectable
  • Display numeric and waveform information simultaneously
  • Nurse call
  • Powerful storage capacity
  • Built-in Lithium-ion Battery for 8 hours working
  • Suitable for adult, pediatric and neonatal patients
  • Trend table review and record
  • Trend graph review and record
  • USB data storage and review
  • Wired and wireless network capability

Available Configuration:

  • M3B
